Photoelectric Sensor

Q4XFNLAF310-Q8

Order ID no. 3097632

Ambient temperature max. (°C): 50
Ambient temperature min. (°C): -10
Connector type: M12 x 1
Design: Rectangular

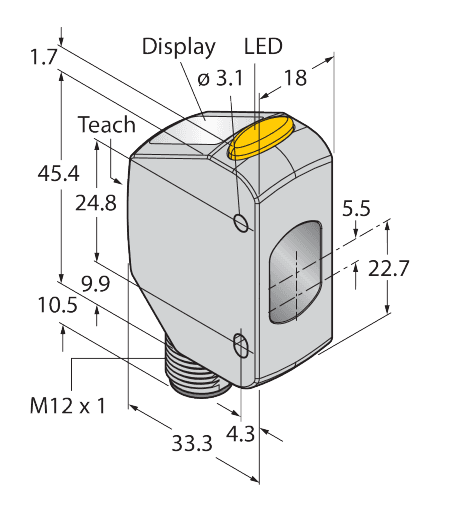

Dimensions: 33,5 mm x 18 mm x 57,5 mm
Display: 4-digit 7-segment LED display
Electrical connection: Connector
Function: Proximity switch
Housing material: Metal
Housing quality: Stainless steel
Laser class:  1
Light type: Red
Max. range (mm): 310
Operating mode: Background/foreground suppression
Optical resolution (mm): 1
Protection class: IP67, IP68, IP69
Special features: Chemical-resistant, Clear object detection, keep/defer, Resistant to chemicals, Wash down
Switching element function: NO/NC
Wavelength (nm): 655
