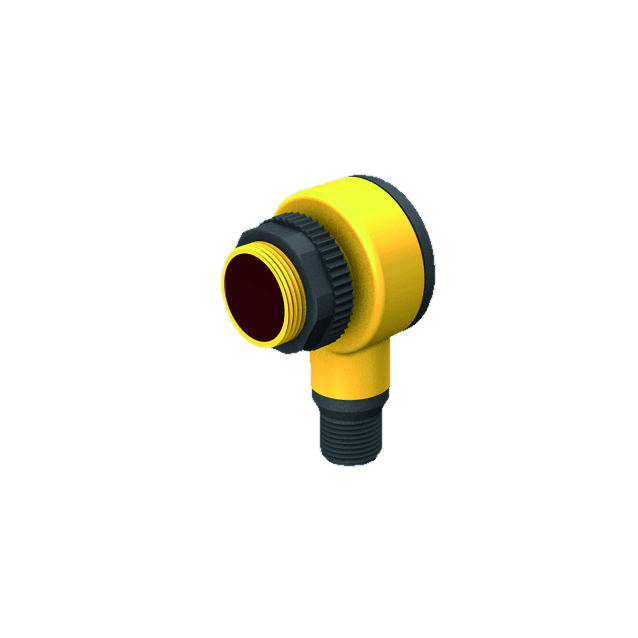

Photoelectric Sensor

T18-2VPFF200-Q8

Order ID no. 3802682

Ambient temperature max. (°C): 70
Ambient temperature min. (°C): -40
Connector type: M12 x 1
Construction size: ⌀ 18 mm
Design: Tube
Dimensions: 30 mm x 30 mm x 54 mm
Electrical connection: Connector
Function: Proximity switch
Housing material: Plastic
Housing quality: Thermoplastic material
Light type: IR
Max. range (mm): 200
Operating mode: Background suppression, non-adjustable
Protection class: IP67, IP68, IP69
Special features: Chemical-resistant, Encapsulated, Resistant to chemicals, Wash down
Switching element function: Complementary contact
Wavelength (nm): 624
