Photoelectric Sensor
VS8EAPAF70Q5
Order ID no. 3803551
home
Home
Loading...
Technical Data
Downloads
Ambient temperature max. (°C)
60
Ambient temperature min. (°C)
-20
Approvals
CE, cULus
Cable length (m)
0.2
Electrical connection
Cable with connector
Connector type
M12 x 1
Design
Rectangular

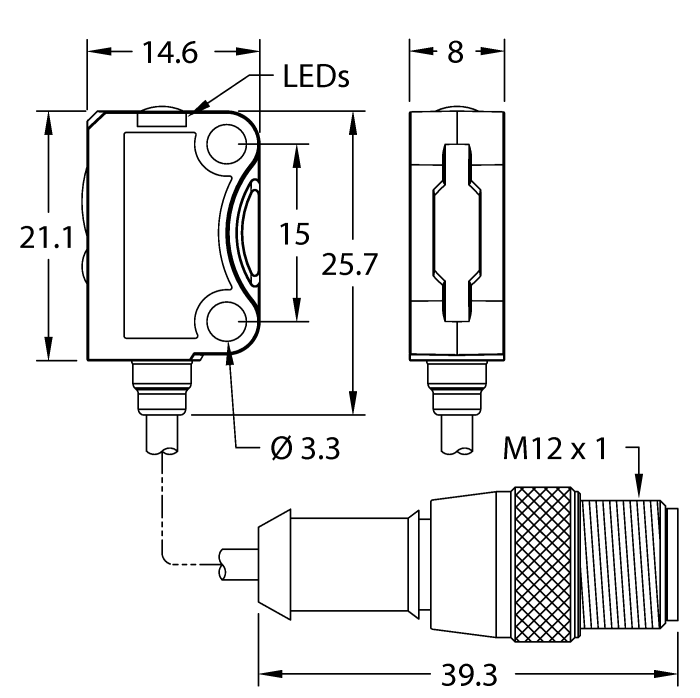

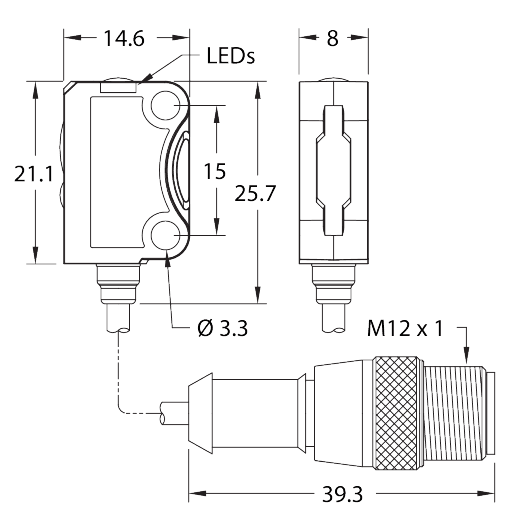

Dimensions
14,6 mm x 8 mm x 25,7 mm
Housing material
Plastic
Housing quality
PUR
Housing surface
Black
Light type
Red
Function
Proximity switch
Operating mode
Background suppression, adjustable
Protection class
IP67
Max. range (mm)
70
Setting option
Push Button, Remote Teach
Switching element function
NO contact
Switching frequency (kHz)
1
Wavelength (nm)
650
Key Features
Light type
Red
Function
Proximity switch
Max. range (mm)
70
In Stock
Price Group
D1
List Price
PLN 1,253.04
