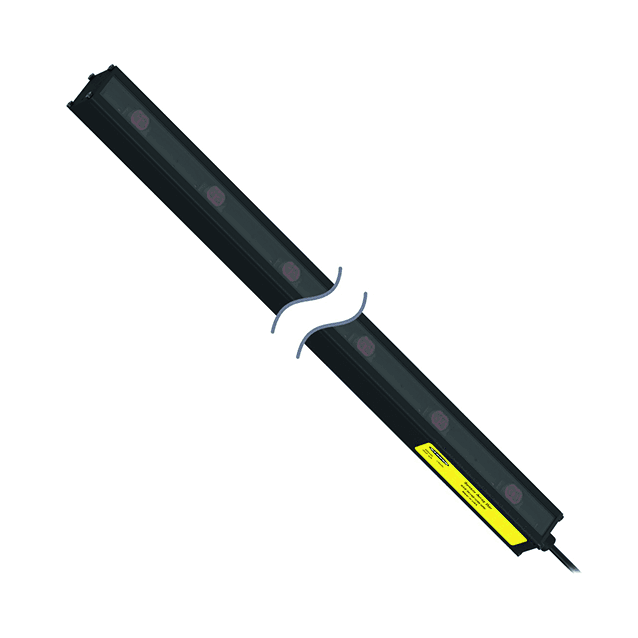

Photoelectric Sensor
SAB-497AB1DS6-Q5E
Order ID no. 3805075
In Stock
Price Group
F3
List Price
PLN 3,685.41
Item Total
PLN 3,685.41
Quantity
−
+
add_shopping_cart
Add to Cart
Contact Support
home
Home
Loading...
Technical Data
Downloads
Ambient temperature max. (°C)
55
Ambient temperature min. (°C)
-20
Cable length (m)
0.15
Cascadable
No
Electrical connection
Cable with connector
Connector type
M12 x 1
Design
Rectangular
Scan field (mm)
497

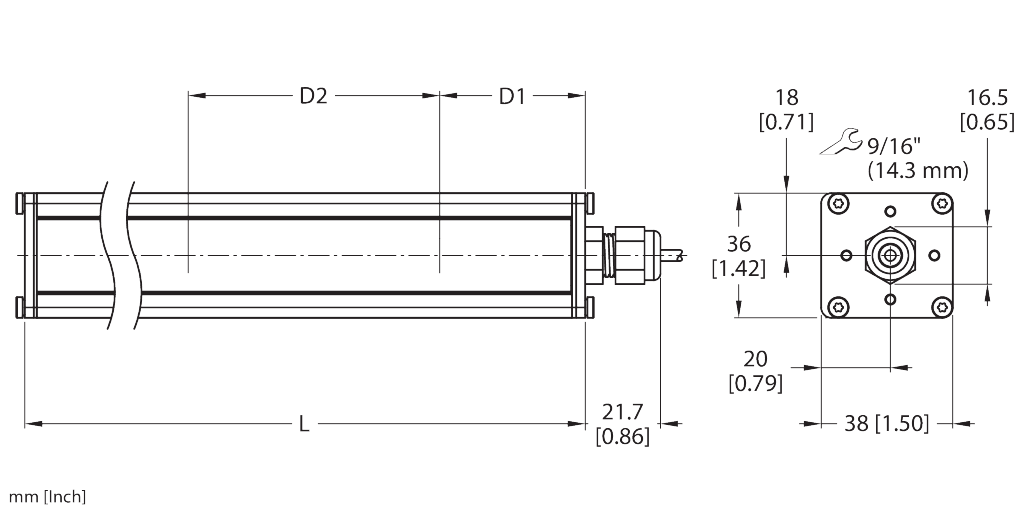

Dimensions
38 mm x 36 mm x 497 mm
Housing material
Metal
Housing quality
Anodized AL
Housing surface
Anodized
Light type
IR
Number of beams
6
Function
Proximity switch
Operating mode
Diffuse
Optical resolution (mm)
82.6
Protection class
IP50
Max. range (mm)
200
Switching element function
NO contact
Wavelength (nm)
940
Key Features
Light type
IR
Function
Proximity switch
Max. range (mm)
200
