QCM50-K3D60-Q8-5 | TURCK - Your Global Automation Partner
arrow_back_ios
arrow_forward_ios

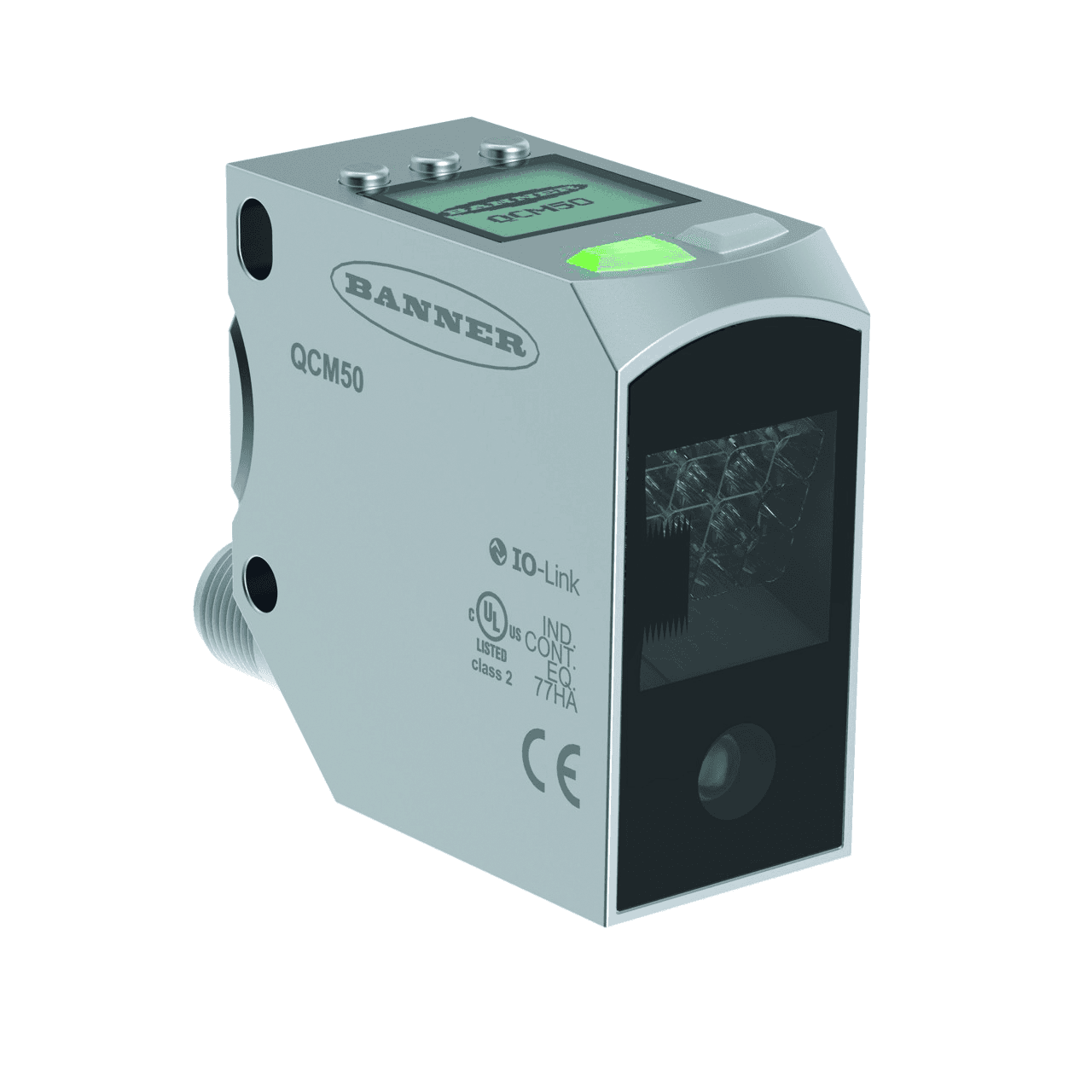

Photoelectric Sensor
QCM50-K3D60-Q8-5
Order ID no. 3806614
home
Home
Loading...
Technical Data
Downloads
Ambient temperature max. (°C)
55
Ambient temperature min. (°C)
-20
Approvals
CE, cULus
Communication protocol
IO-Link
Electrical connection
Connector
Connector type
M12 x 1
Design
Rectangular

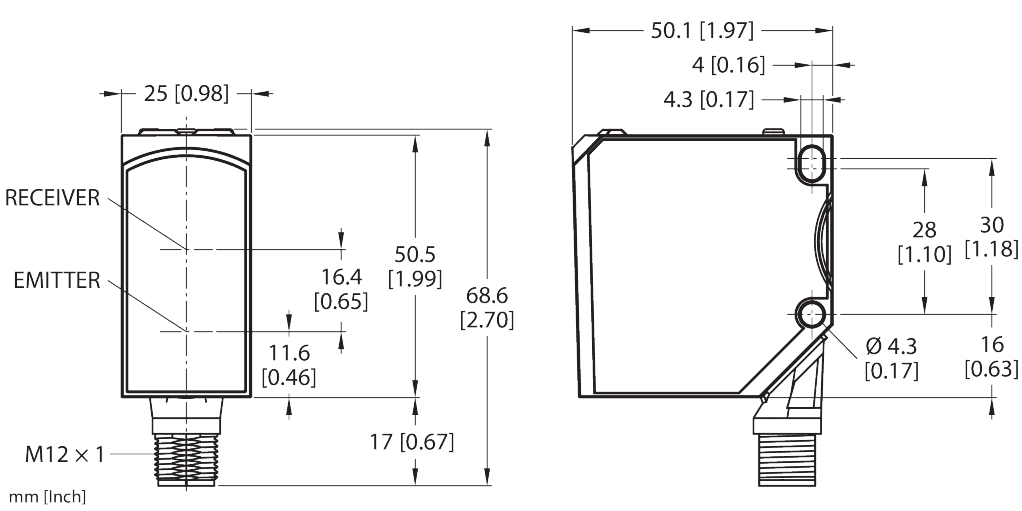

Dimensions
50 mm x 25 mm x 50,5 mm
Housing material
Die-cast zinc
Housing surface
Grey
Light type
White
Function
Inspection sensor
Operating mode
Color sensor
Protection class
IP67, IP69K
Max. range (mm)
150
Setting option
Push Button, IO-Link
Switching element function
NO contact
Switching frequency (kHz)
1.5
Key Features
Light type
White
Function
Inspection sensor
Max. range (mm)
150
In Stock
Price Group
F3
List Price
PLN 5,588.69
