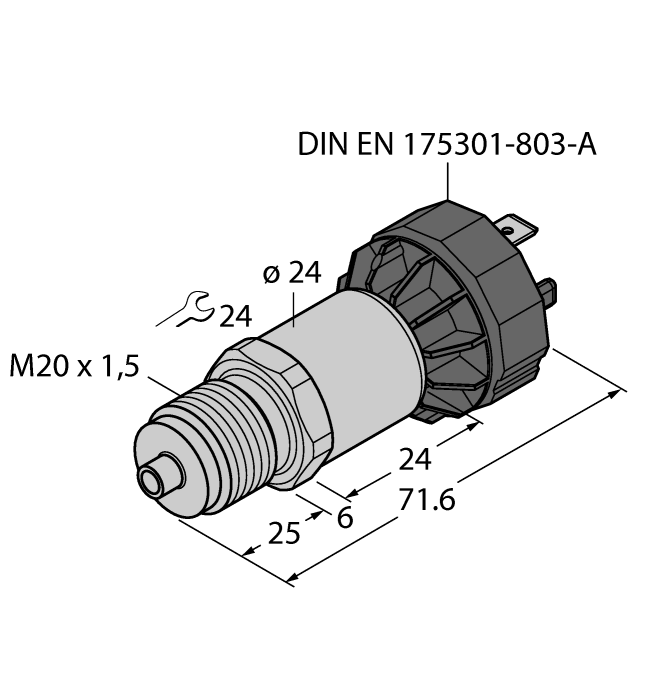

Pressure Transmitter

PT1.6R-1020-I2-DA91

Order ID no. 100002529

Item Total658,83 zł

Quantity

Ambient temperature max. (°C): 85
Ambient temperature min. (°C): -30
Approvals: cULus
Connector type: DIN EN 175301-803 Form A
Design: Without display
Electrical output: Current output (2-wire)
Electrical connection: Connector
Housing material: Stainless-steel/Plastic
Housing quality: 1.4404 (AISI 316L)/polyarylamide 50 % GF UL 94 V-0
Material pressure transducer: Ceramic Al₂O₃
Media temperature max. (°C): 125
Media temperature min. (°C): -40
Operating voltage: DC
Pressure range: 0...1,6 bar
Pressure type: Relative pressure
Process connection: M20 x1.5 male thread, front sealing and manometer (combi)
Protection class: IP65

Electrical output: Current output (2-wire)
Process connection: M20 x1.5 male thread, front sealing and manometer (combi)
