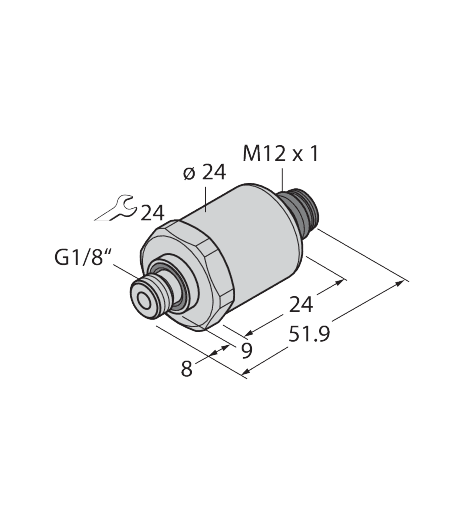

Pressure Transmitter

PT1V-1013-IOL-H1141

Order ID no. 100021803

In Stock

Electrical output: 2 x switching output
Ambient temperature max. (°C): 85
Ambient temperature min. (°C): -30
Approvals: cULus
Communication protocol: IO-Link
Electrical connection: Connector
Connector type: M12 x 1
Design: Without display
Housing material: Stainless-steel/Plastic
Housing quality: 1.4404 (AISI 316L)/polyarylamide 50 % GF UL 94 V-0
Material pressure transducer: Ceramic Al₂O₃
Process connection: G 1/8″ male thread (back sealing) according to DIN EN ISO 1179-2 with FPM profile sealing ring
Media temperature max. (°C): 125
Media temperature min. (°C): -40
Pressure range: -1...1 bar
Operating voltage: DC
Pressure type: Relative pressure
Protection class: IP67
Switching element function: NO/NC

Communication protocol: IO-Link
Electrical output: 2 x switching output
Process connection: G 1/8″ male thread (back sealing) according to DIN EN ISO 1179-2 with FPM profile sealing ring
