Pressure Transmitter

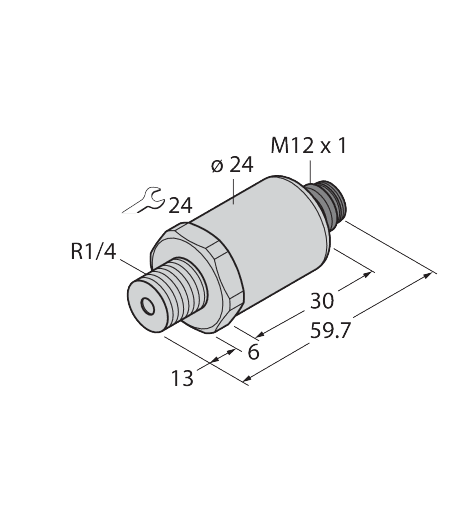

PT250R-2010-IOL-H1141
Order ID no. 100025595
In Stock
Price Group
G1
List Price
PLN 766.36
Item Total
PLN 766.36
Quantity
−
+
add_shopping_cart
Add to Cart
Contact Support
home
Turck-Shop
Sensors
Pressure Sensors
PT250R-2010-IOL-H1141
Technical Data
Downloads
Electrical output
2 x switching output
Ambient temperature max. (°C)
85
Ambient temperature min. (°C)
-30
Approvals
cULus
Communication protocol
IO-Link
Electrical connection
Connector
Connector type
M12 x 1
Design
Without display
Housing material
Stainless-steel/Plastic
Housing quality
1.4404 (AISI 316L)/polyarylamide 50 % GF UL 94 V-0
Material pressure transducer
Stainless steel 1.4435 (AISI 316L)
Process connection
R 1/4″ male thread EN 10226
Media temperature max. (°C)
135
Media temperature min. (°C)
-40
Pressure range
0...250 bar
Operating voltage
DC
Pressure type
Relative pressure
Protection class
IP67
Switching element function
NO/NC
Key Features
Communication protocol
IO-Link
Electrical output
2 x switching output
Process connection
R 1/4″ male thread EN 10226
