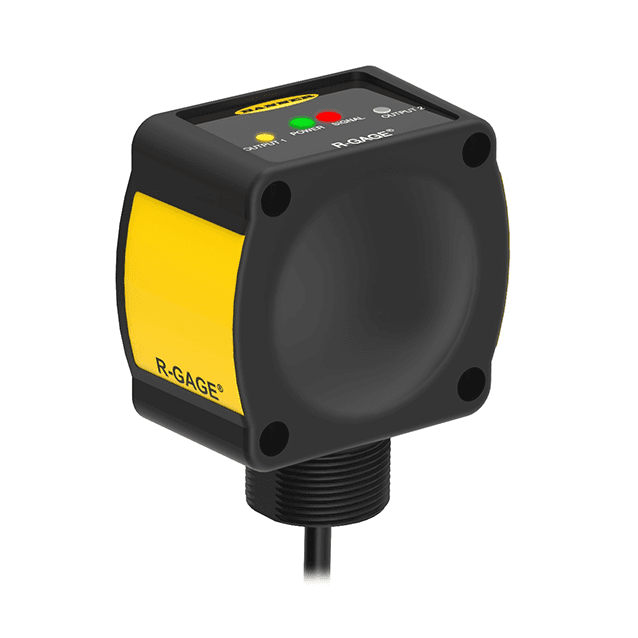

Radar Sensor
QT50R-EU-AFS
Order ID no. 3054270
In Stock
Price Group
F3
List Price
PLN 5,104.03
Item Total
PLN 5,104.03
Quantity
−
+
add_shopping_cart
Add to Cart
home
Turck-Shop
Sensors
Radar Sensors
QT50R-EU-AFS
Technical Data
Downloads
Function
Distance measurement
Ambient temperature max. (°C)
65
Ambient temperature min. (°C)
-40
Antenna connection
Internal, planar
Cable length (m)
2
Electrical connection
Cable
Design
Rectangular

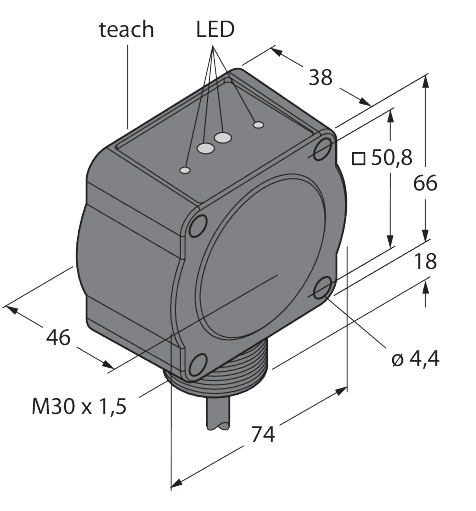

Dimensions
46,1 mm x 74,1 mm x 88,8 mm
Frequency band
K band, ISM region
Frequency range
24.05 - 24.25 GHz
Housing material
Plastic
Housing quality
ABS/Polycarbonate
Housing surface
Black
Function
Proximity switch
Operating mode
Time-of-Flight
Operating voltage
DC
Protection class
IP67
Beam angle
90° x 76°
Max. range (mm)
3500
Setting option
DIP switch, Vision Software and Firmware
Switching element function
NO/NC programmable
Key Features
Electrical connection
Cable
Beam angle
90° x 76°
Max. range (mm)
3500
