Q240RA-EU-AF2Q

Q240RA-EU-AF2Q

Thumbnail for Q240RA-EU-AF2Q

Thumbnail for Q240RA-EU-AF2Q

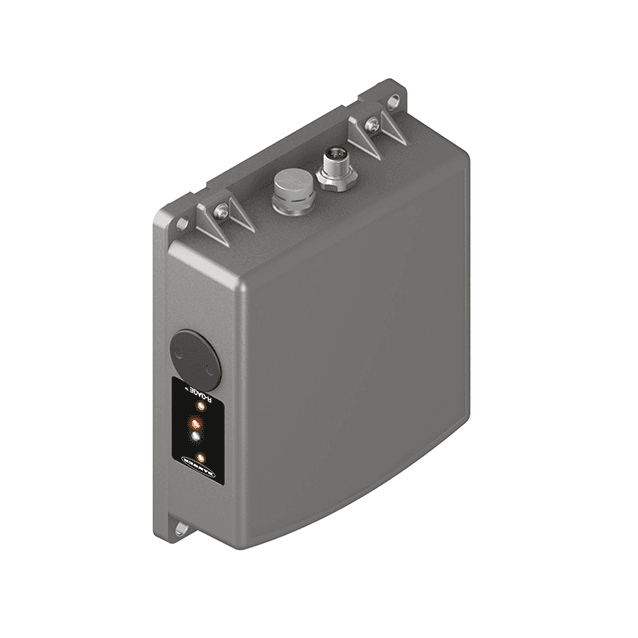

Radar Sensor

Q240RA-EU-AF2Q

Order ID no. 3092481

In Stock
Price Group	F3
List Price	PLN 14,433.66

Item TotalPLN 14,433.66

Quantity

Contact Support

homeHome
Loading...

Function: Distance measurement
Ambient temperature max. (°C): 65
Ambient temperature min. (°C): -40
Antenna connection: Internal, planar
Electrical connection: Connector
Connector type: M12 x 1
Design: Rectangular

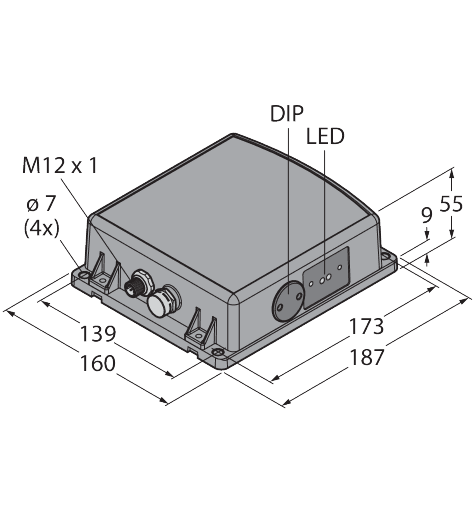

Dimensions: 55 mm x 158 mm x 186,9 mm
Frequency band: K band, ISM region
Frequency range: 24.05…24.25 GHz
Housing material: Plastic
Housing quality: PC
Housing surface: Grey
Function: Proximity switch
Operating mode: Time-of-Flight
Operating voltage: DC
Protection class: IP67
Beam angle: 11° x 13°
Max. range (mm): 40000
Setting option: DIP switch, Vision Software and Firmware
Switching element function: NO/NC programmable

Key Features

Electrical connection: Connector
Beam angle: 11° x 13°
Max. range (mm): 40000
