Radar Sensor
Q120RA-EU-AF2WQ
Order ID no. 3096355
home
Home
Loading...
Technical Data
Downloads
Function
Distance measurement
Ambient temperature max. (°C)
65
Ambient temperature min. (°C)
-40
Antenna connection
Internal, planar
Electrical connection
Connector
Connector type
M12 x 1
Design
Rectangular

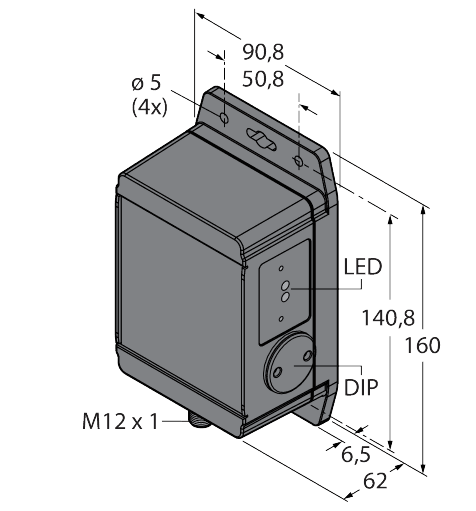

Dimensions
62 mm x 90,8 mm x 159,5 mm
Frequency band
K band, ISM region
Frequency range
24.05 - 24.25 GHz
Housing material
Plastic
Housing quality
ABS/Polycarbonate
Housing surface
Black
Function
Proximity switch
Operating mode
Time-of-Flight
Operating voltage
DC
Protection class
IP67
Beam angle
24° x 50°
Max. range (mm)
26000
Setting option
DIP switch, Vision Software and Firmware
Switching element function
NO/NC programmable
Key Features
Electrical connection
Connector
Beam angle
24° x 50°
Max. range (mm)
26000
In Stock
Price Group
F3
List Price
PLN 12,277.95
