Radar Sensor
T30R-1515-LKUQ
Order ID no. 3814005
In Stock
Price Group
F3
List Price
PLN 4,907.14
Item Total
PLN 4,907.14
Quantity
−
+
add_shopping_cart
Add to Cart
Contact Support
home
Turck-Shop
Sensors
Radar Sensors
T30R-1515-LKUQ
Technical Data
Downloads
Function
Distance measurement
Ambient temperature max. (°C)
65
Ambient temperature min. (°C)
-40
Antenna connection
Internal, planar
Approvals
CE, UKCA, UL Listed
Communication protocol
IO-Link
Electrical connection
Connector
Connector type
M12 x 1
Design
Rectangular with thread

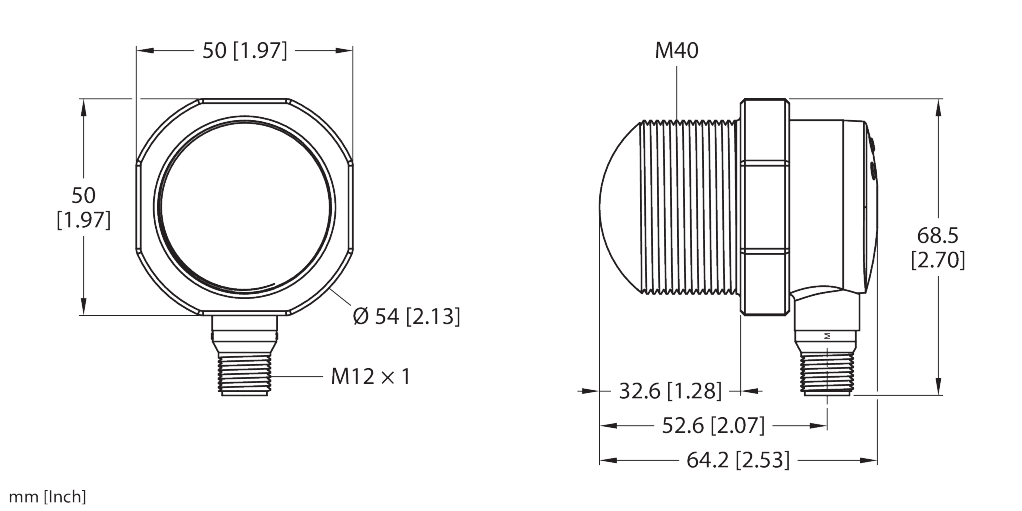

Dimensions
52,9 mm x 40,6 mm x 63,8 mm
Frequency band
F band, ISM region
Frequency range
122…123 GHz
Housing material
Plastic
Housing quality
PBT
Housing surface
Yellow
Function
Proximity switch
Operating voltage
DC
Protection class
IP67
Max. range (mm)
25000
Setting option
Vision Software and Firmware, Push Button
Switching element function
NO/NC programmable
Key Features
Electrical connection
Connector
Max. range (mm)
25000
