Radar Sensor

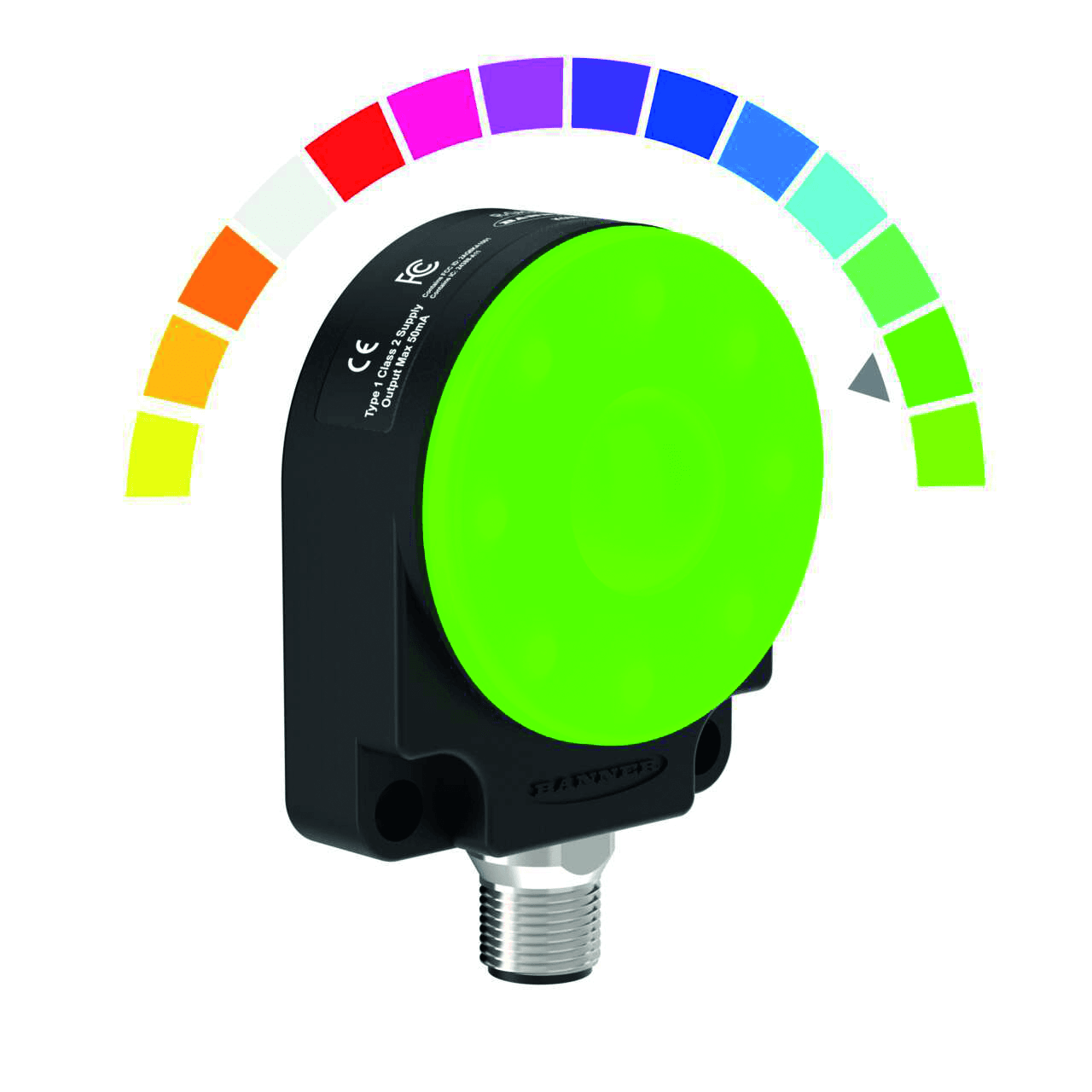

K50RPF-4030-LDQ
Order ID no. 3815569
home
Home
Loading...
Technical Data
Downloads
Function
Distance measurement
Ambient temperature max. (°C)
60
Ambient temperature min. (°C)
-40
Antenna connection
Internal, planar
Electrical connection
Connector
Connector type
M12 x 1
Design
Rectangular

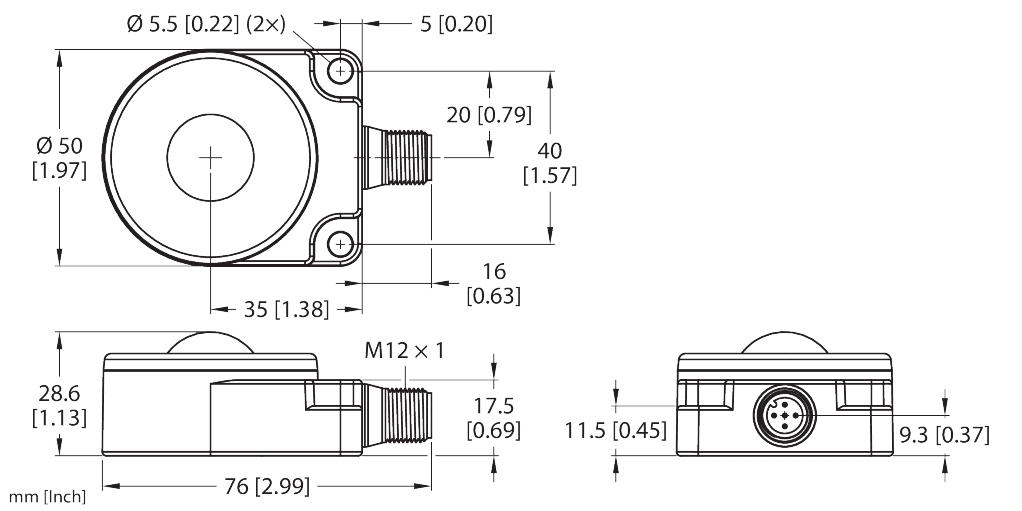

Dimensions
76 mm x 50 mm x 23,1 mm
Frequency band
F band, ISM region
Frequency range
60.5 GHz
Housing material
Plastic
Housing quality
PC
Function
Proximity switch
Operating mode
Time-of-Flight
Operating voltage
DC
Protection class
IP67
Beam angle
40° × 30°
Max. range (mm)
5000
Setting option
Remote Teach, Vision Software and Firmware
Switching element function
NO/NC programmable
Key Features
Electrical connection
Connector
Beam angle
40° × 30°
Max. range (mm)
5000
In Stock
Price Group
F3
List Price
PLN 1,862.39
home
Turck-Shop
Sensors
Radar Sensors
K50RPF-4030-LDQ
Item Total
PLN 1,862.39
Quantity
−
+
add_shopping_cart
Add to Cart
Contact Support
