Q45UBB63DACQ | TURCK - Your Global Automation Partner
Ultrasonic sensor Diffuse-mode sensor
Q45UBB63DACQ
Order ID no. 3044133
home
Home
Loading...
Technical Data
Downloads
Ambient temperature max. (°C)
70
Ambient temperature min. (°C)
-25
Connector type
7/8″
Design
Rectangular

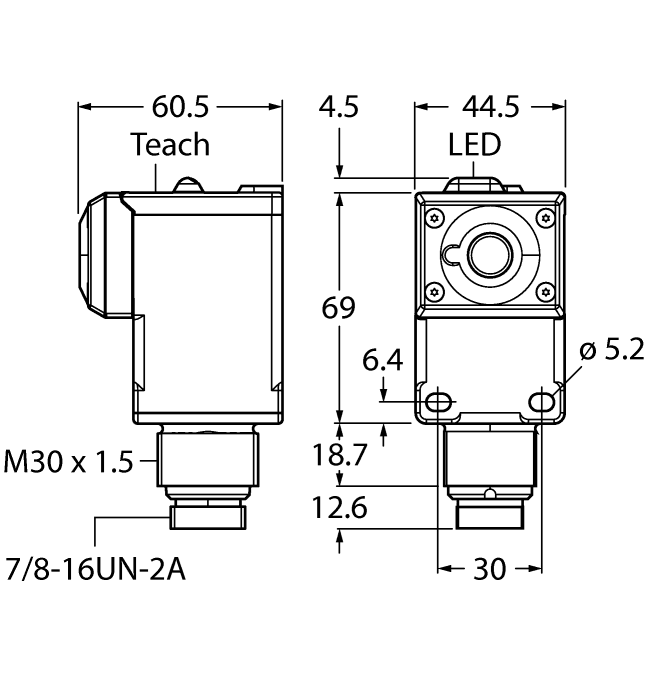

Dimensions
60,5 mm x 44,5 mm x 102,6 mm
Electrical connection
Connector
Function
Proximity switch
Housing material
Plastic
Housing quality
PBT
Max. range (mm)
1400
Operating mode
Time-of-Flight
Protection class
IP67
Radiation direction
straight
Special features
Clear object detection
Switching element function
NO contact
Key Features
Electrical connection
Connector
Max. range (mm)
1400
In Stock
Price Group
F3
List Price
3392,59 zł
