QS18UPAQ | TURCK - Your Global Automation Partner
arrow_back_ios
arrow_forward_ios
Ultrasonic Sensor
QS18UPAQ
Order ID no. 3073159
home
Home
Loading...
Technical Data
Downloads
Special features
Clear object detection
Ambient temperature max. (°C)
60
Ambient temperature min. (°C)
-20
Cable length (m)
0.15
Electrical connection
Cable with connector
Connector type
M8 x 1
Design
Rectangular with thread

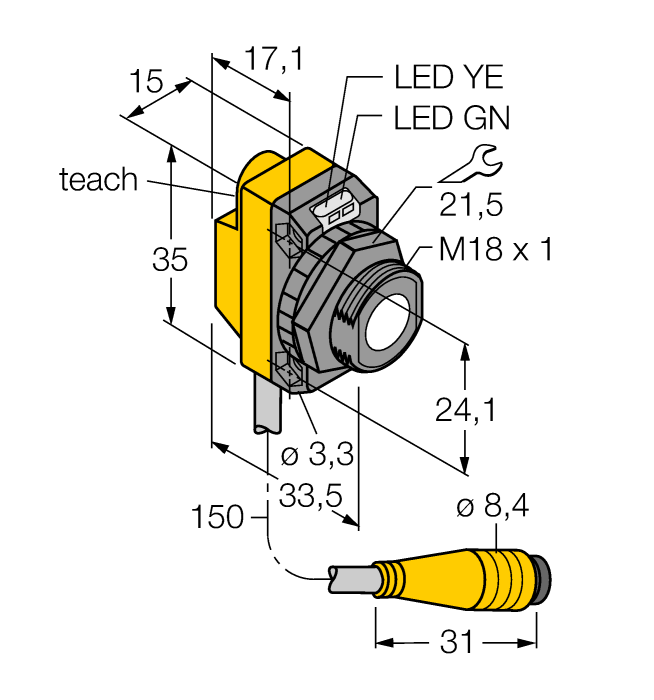

Dimensions
33,5 mm x 15 mm x 35 mm
Housing material
Plastic
Housing quality
ABS
Function
Proximity switch
Operating mode
Time-of-Flight
Protection class
IP67
Max. range (mm)
500
Switching element function
NO contact
Radiation direction
straight
Key Features
Electrical connection
Cable with connector
Max. range (mm)
500
