QS18UNAEQ8 | TURCK - Your Global Automation Partner
arrow_back_ios
arrow_forward_ios

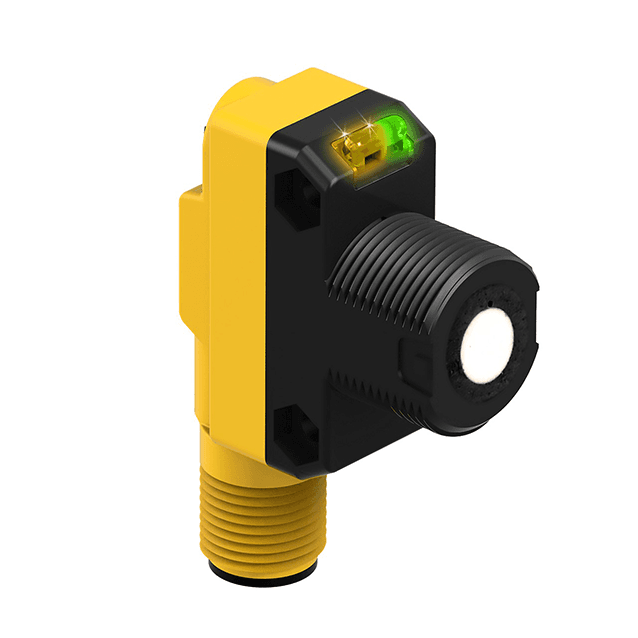

Ultrasonic Sensor
QS18UNAEQ8
Order ID no. 3073161
home
Home
Loading...
Technical Data
Downloads
Special features
Clear object detection, Wash down
Ambient temperature max. (°C)
60
Ambient temperature min. (°C)
-20
Electrical connection
Connector
Connector type
M12 x 1
Design
Rectangular with thread

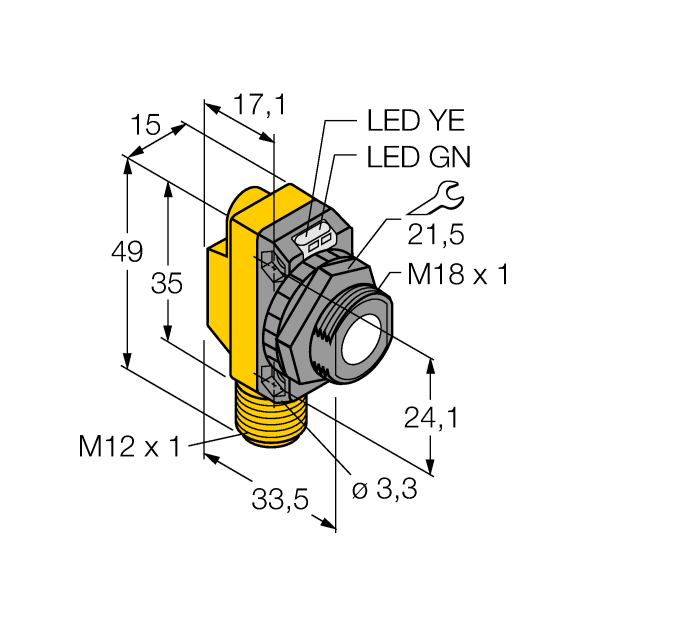

Dimensions
33,5 mm x 15 mm x 35 mm
Housing material
Plastic
Housing quality
ABS
Function
Proximity switch
Operating mode
Time-of-Flight
Protection class
IP68
Max. range (mm)
500
Switching element function
NO contact
Radiation direction
straight
Key Features
Electrical connection
Connector
Max. range (mm)
500
In Stock
Price Group
F3
List Price
PLN 916.30
