Ultrasonic Sensor
QS18UNAEQ
Order ID no. 3073164
home
Home
Loading...
Technical Data
Downloads
Special features
Clear object detection, Wash down
Ambient temperature max. (°C)
60
Ambient temperature min. (°C)
-20
Cable length (m)
0.15
Electrical connection
Cable with connector
Connector type
M8 x 1
Design
Rectangular with thread

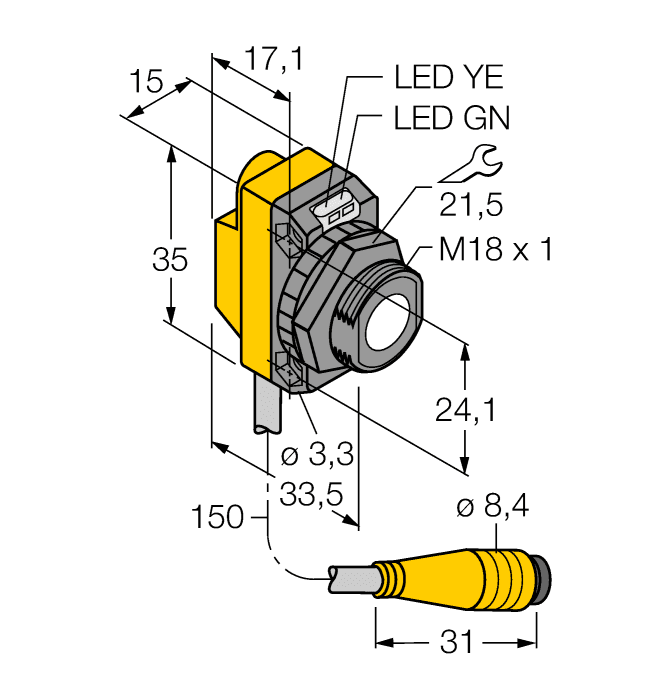

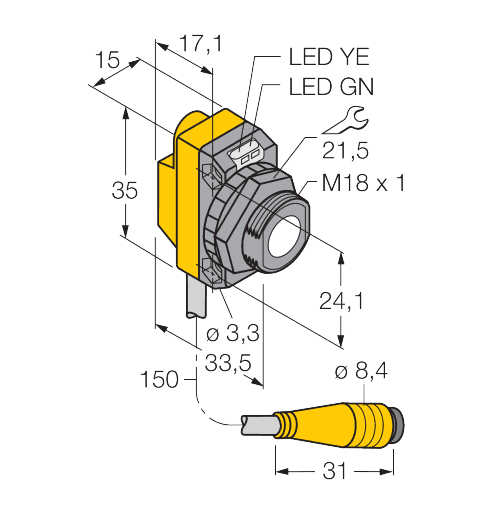

Dimensions
33,5 mm x 15 mm x 35 mm
Housing material
Plastic
Housing quality
ABS
Function
Proximity switch
Operating mode
Time-of-Flight
Protection class
IP68
Max. range (mm)
500
Switching element function
NO contact
Radiation direction
straight
Key Features
Electrical connection
Cable with connector
Max. range (mm)
500
In Stock
Price Group
F3
List Price
PLN 1,010.20
Item Total
PLN 1,010.20
Quantity
−
+
